| 제품 사양 (Specification) | |||
|---|---|---|---|
| CPU | 4th generation LGA1150 Intel® Core™ i3/i5/i7 (etc) | Video port | VGA * 1, DVI-D * 1 |
| Graphics | Intel(R) HD Graphics | Audio | 3 * Audio jacks (line-out, line-in, mic-in) |
| Memory | Dual-channel DDR3 1333/1600 MHz support up to 16 GB | Expantion slot | 1 * PCLeX16, 2 * PCLeX1, 1 * PCLe Mini, 4 * PCI, 1 * mSATA |
| Storage | 2 x SATA 3Gb/s, 2 x SATA 6Gb/s | Power | AC 200V ATX |

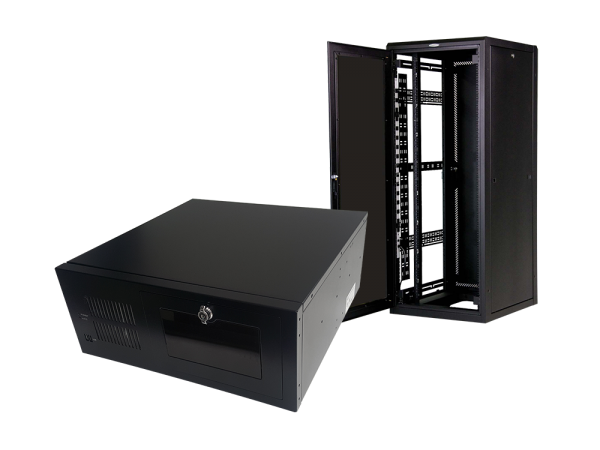

| Ethernet | 2 * LAN | Mounting | 19" 4U Server Rack Mount |
| USB | Rear-2 * USB2.0, 2 * USB3.0, Front-2 * USB2.0 | Operating temp. | 0 to 50℃ |
| Serial port | 2 * RS232, 3 * RS232(Optional), 1 * RS422/485(Optional) | Size | 435.5mm * 431mm * 176mm(W*D*H) |
※ I/O Port는 보드 사양에 따라 변경될 수 있으며 Customizing Item 관련 상담은 dnsys@dnsys.co.kr 로 문의하세요.
