Specification

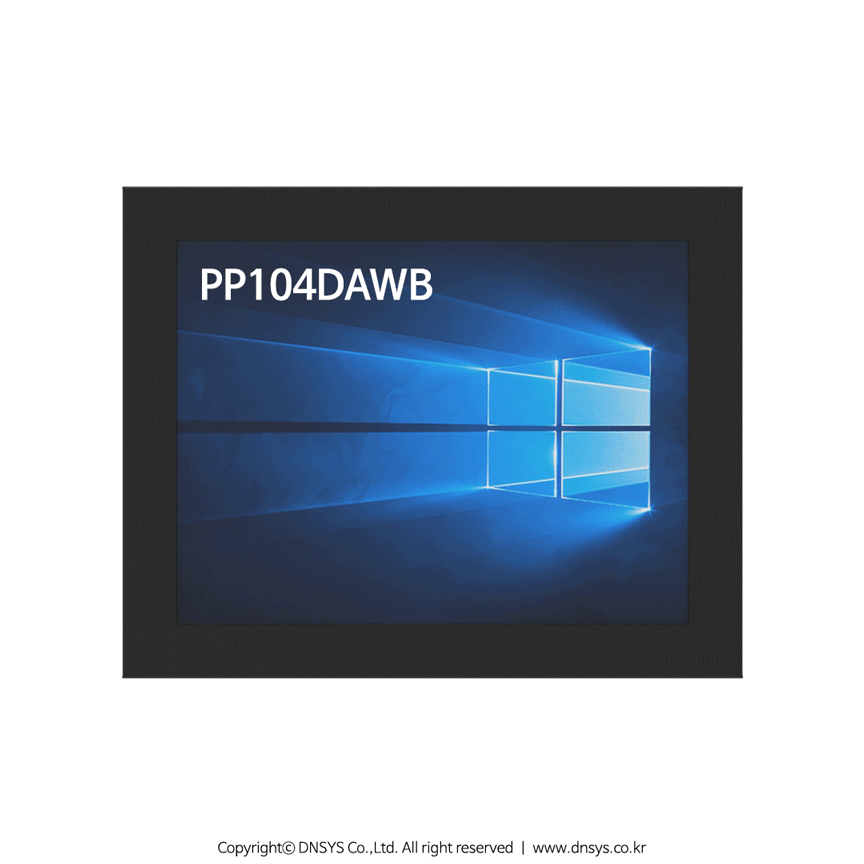

| PP104DAWB | |||
|---|---|---|---|

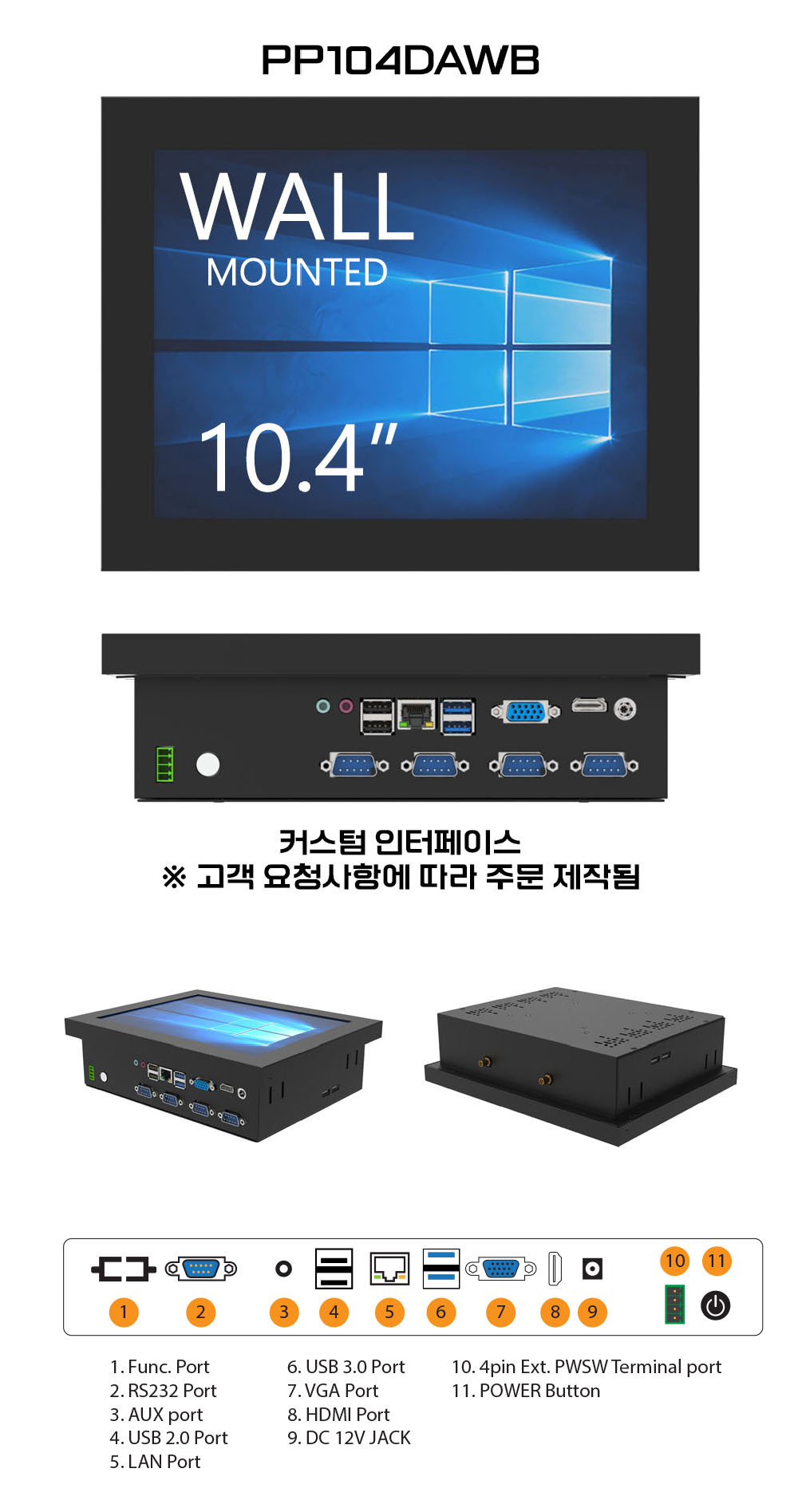

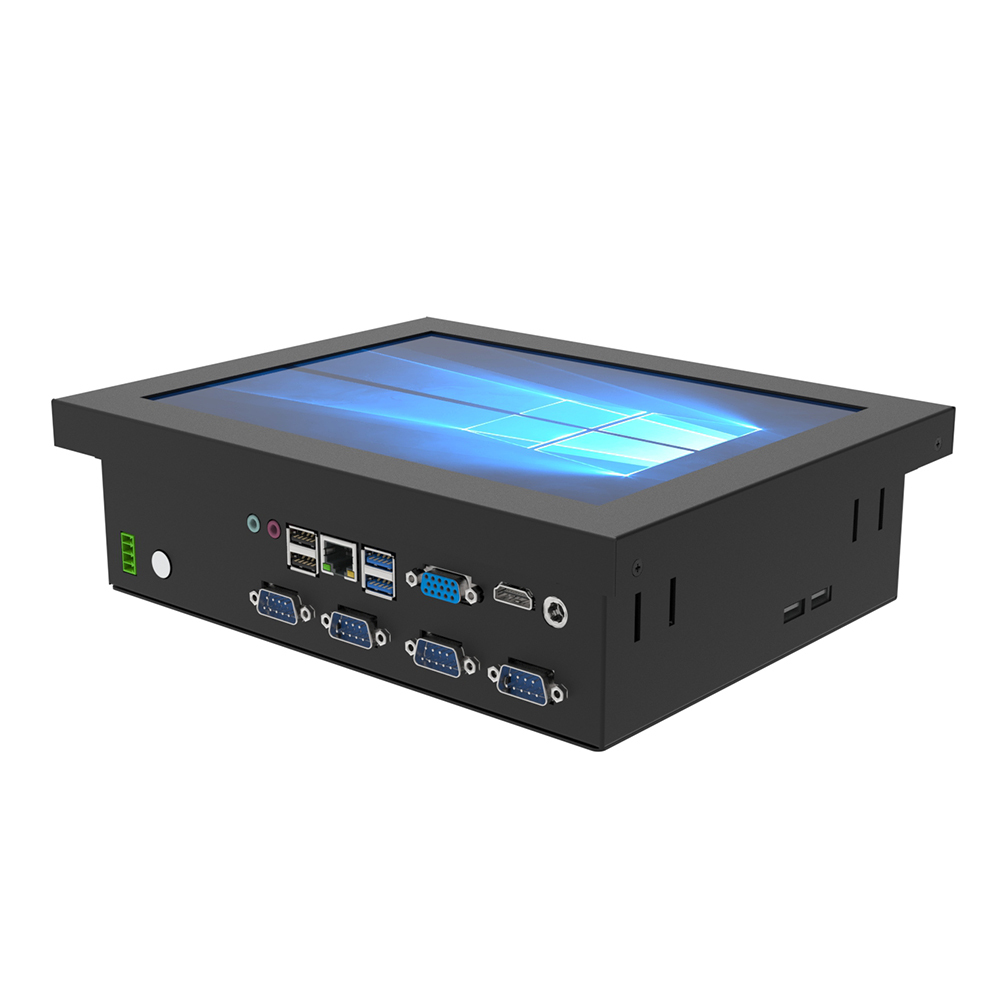

| Display Type | 10.4" TFT-LCD LED Backlight | USB Port | 2×USB2.0, USB3.0 / 2×USB 2.0(Optional) [max. 6] |
| Max Resolution | 1024 × 768px XGA | Serial Port |
2 × RS232 (Max. 6) (Optional) 1 × RS485 or 1 × RS422 |
| Luminance | 300 cd/㎡ | Video Output | 1 × RGB, 1 × HDMI |

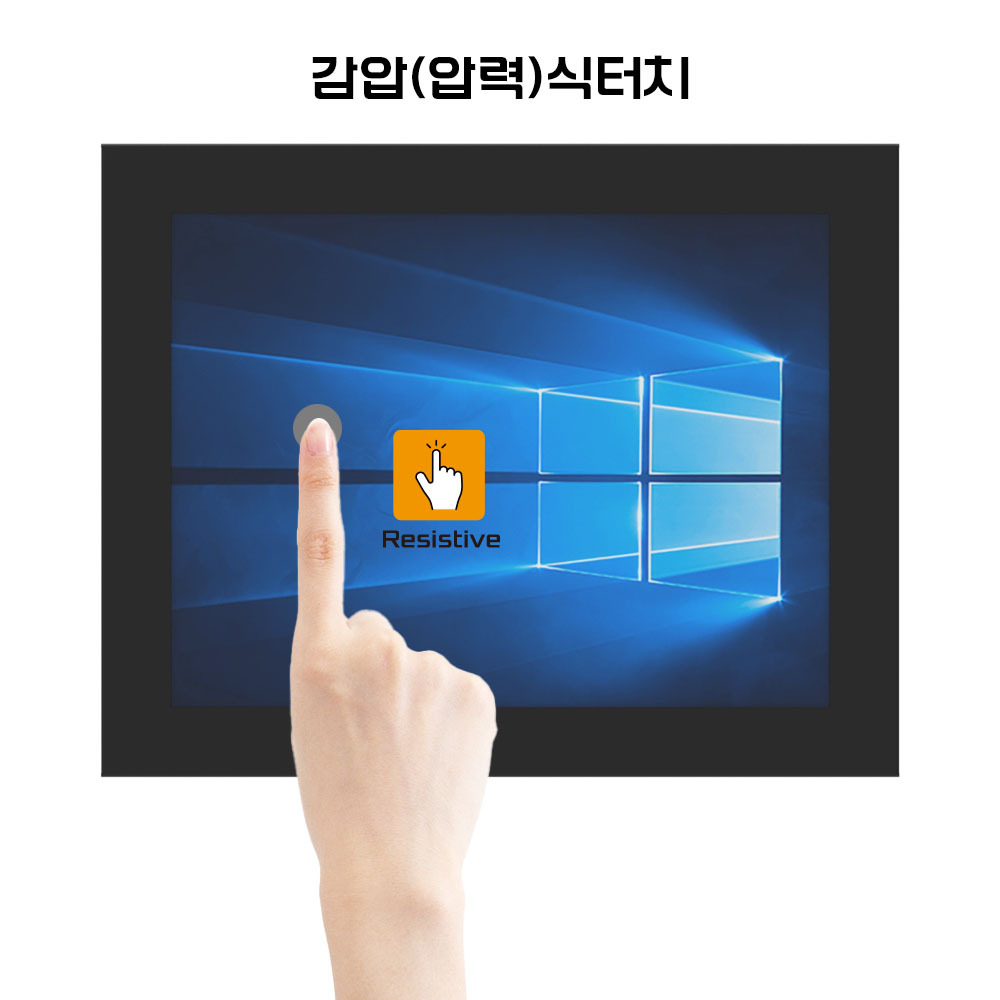

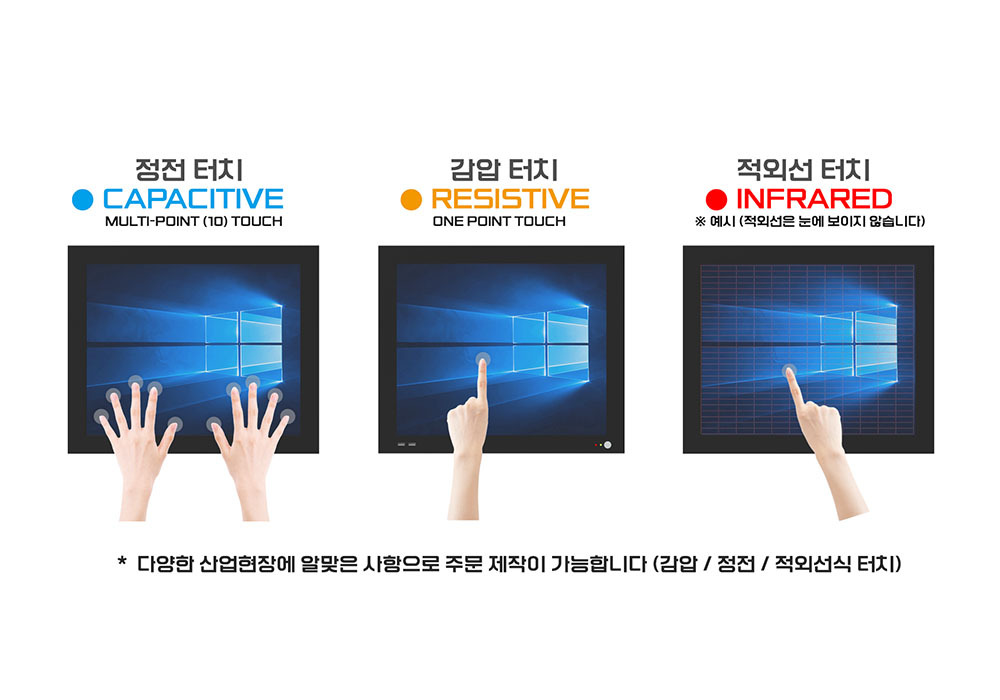

| Touch Screen | Resistive / Capacitive | Audio Port | 1 × MIC, 1 × Line-out |

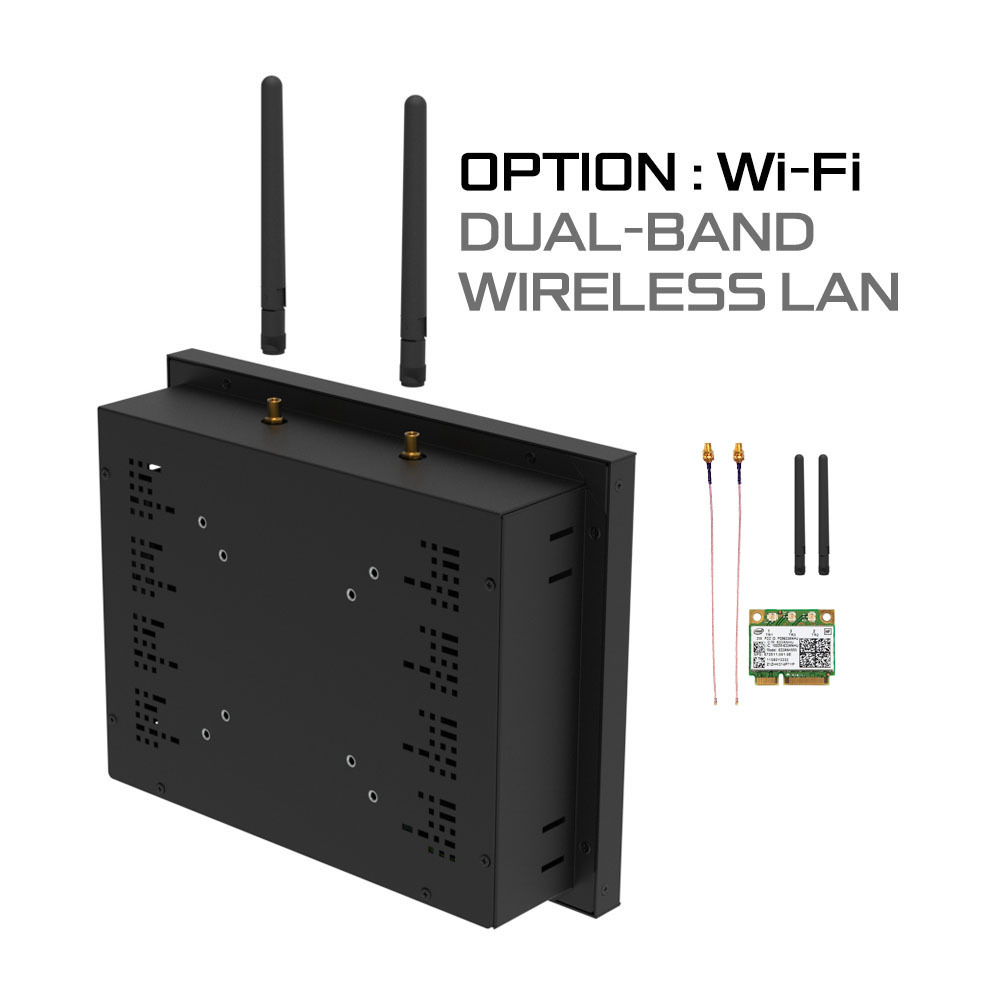

| CPU | Celeron J1900 / Core-i3, i5 | Wireless | 2 × WiFi / 3G SMA Antenna (Optional) |
| Graphics | Intel HD Graphics | Power | DC 12V 5A |

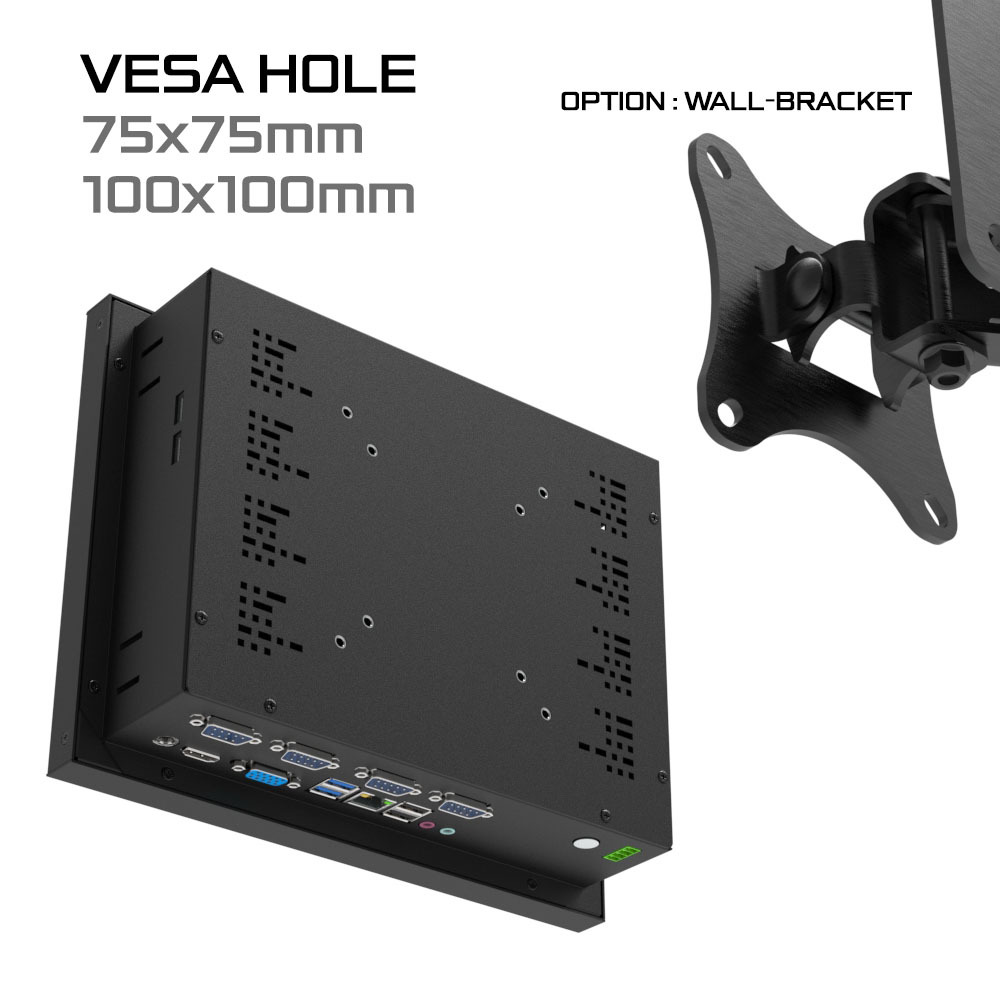

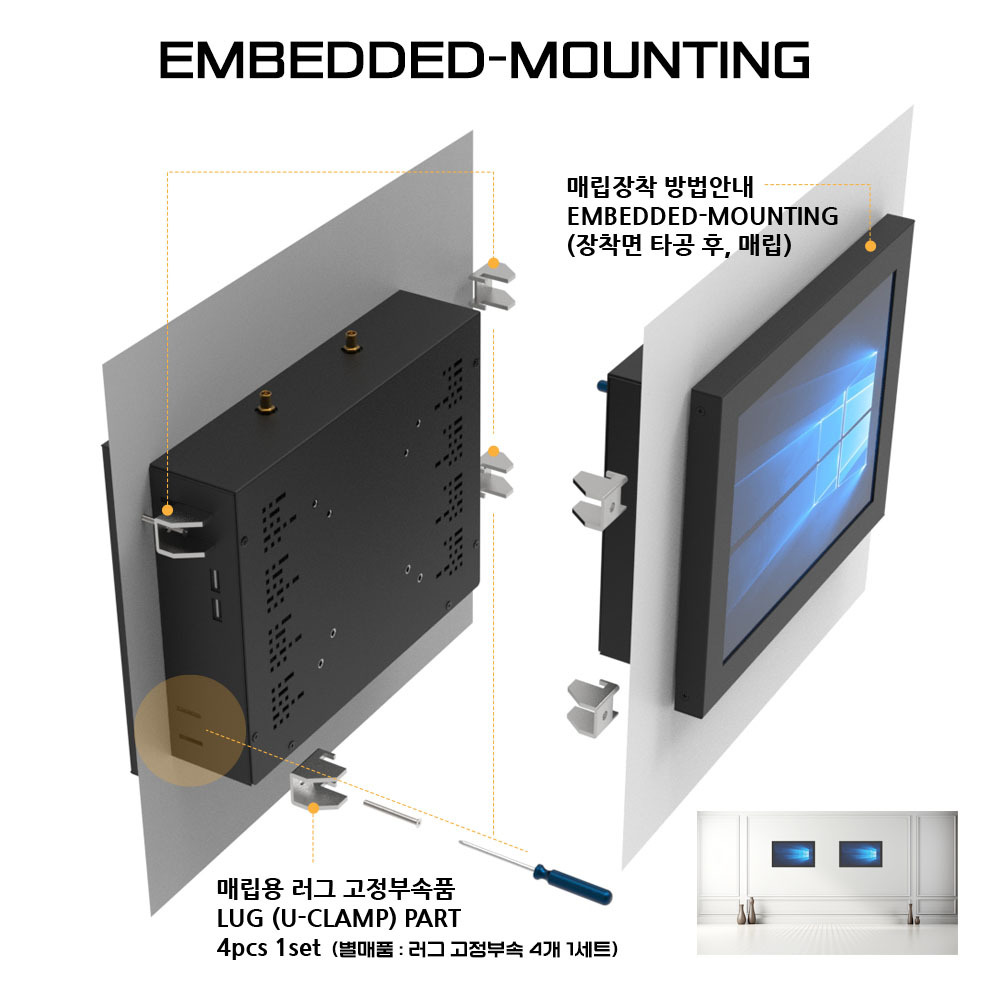

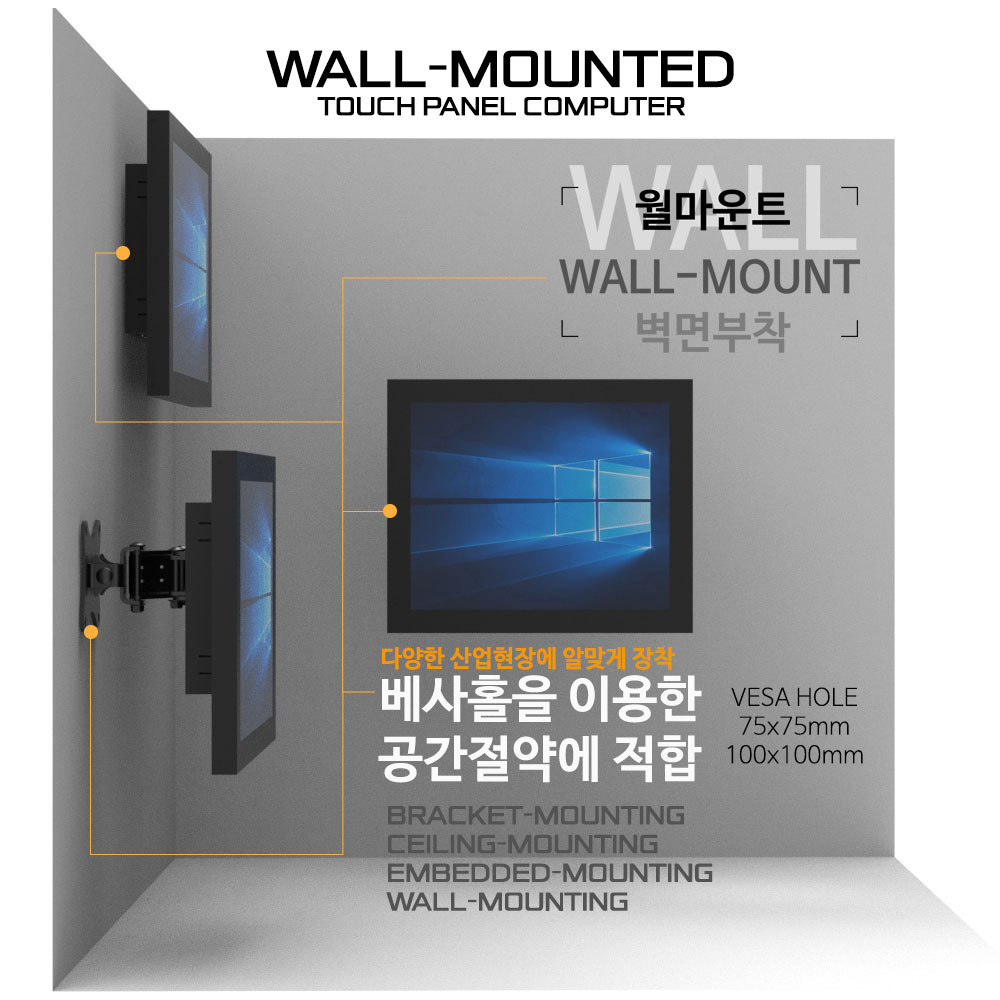

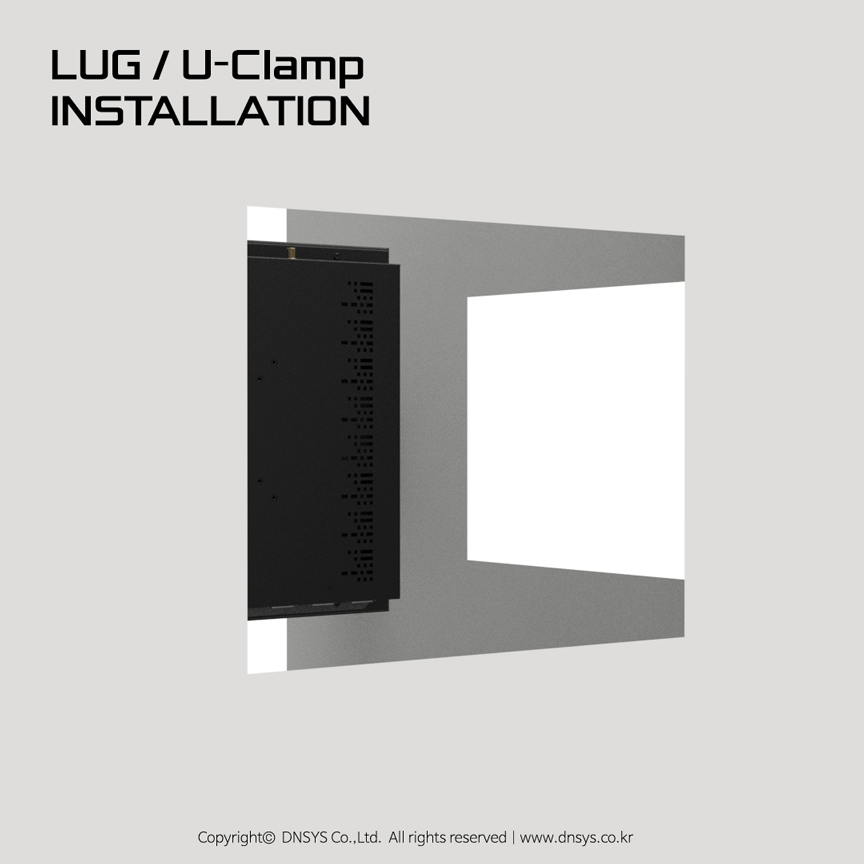

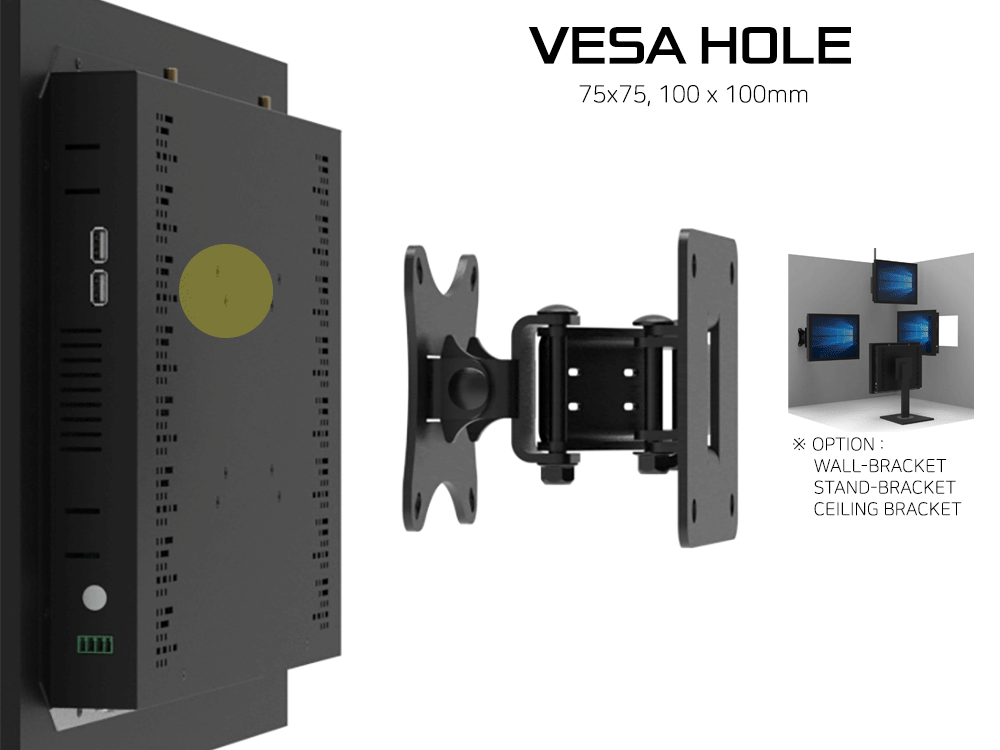

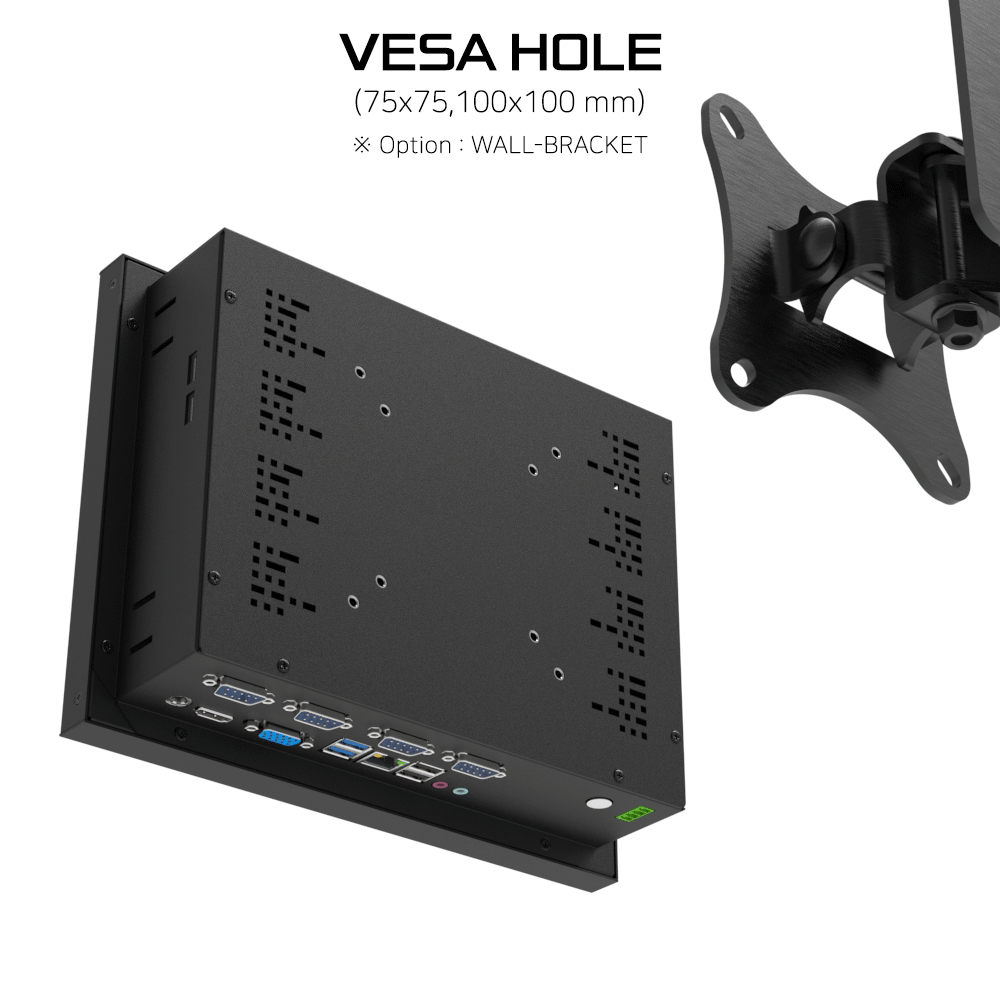

| Memory | 1 × DDR3 1.5V, 2GB / 4GB / 8GB / Max | Mounting | VESA (75 × 75 & 100 × 100mm) & Clamps |
| Storage | HDD 500GB, 1TB / SSD 128~512GB (Selectable) | Operating Temp | 0℃ ~ 50℃ |
| Ethernet | 1 × RJ45 (RTL8111E) [option 2 x RJ45] | Storage Temp | -20℃ ~ 60℃ |
| Dimension | ※ Drawing reference | Weight | ※ Drawing reference |

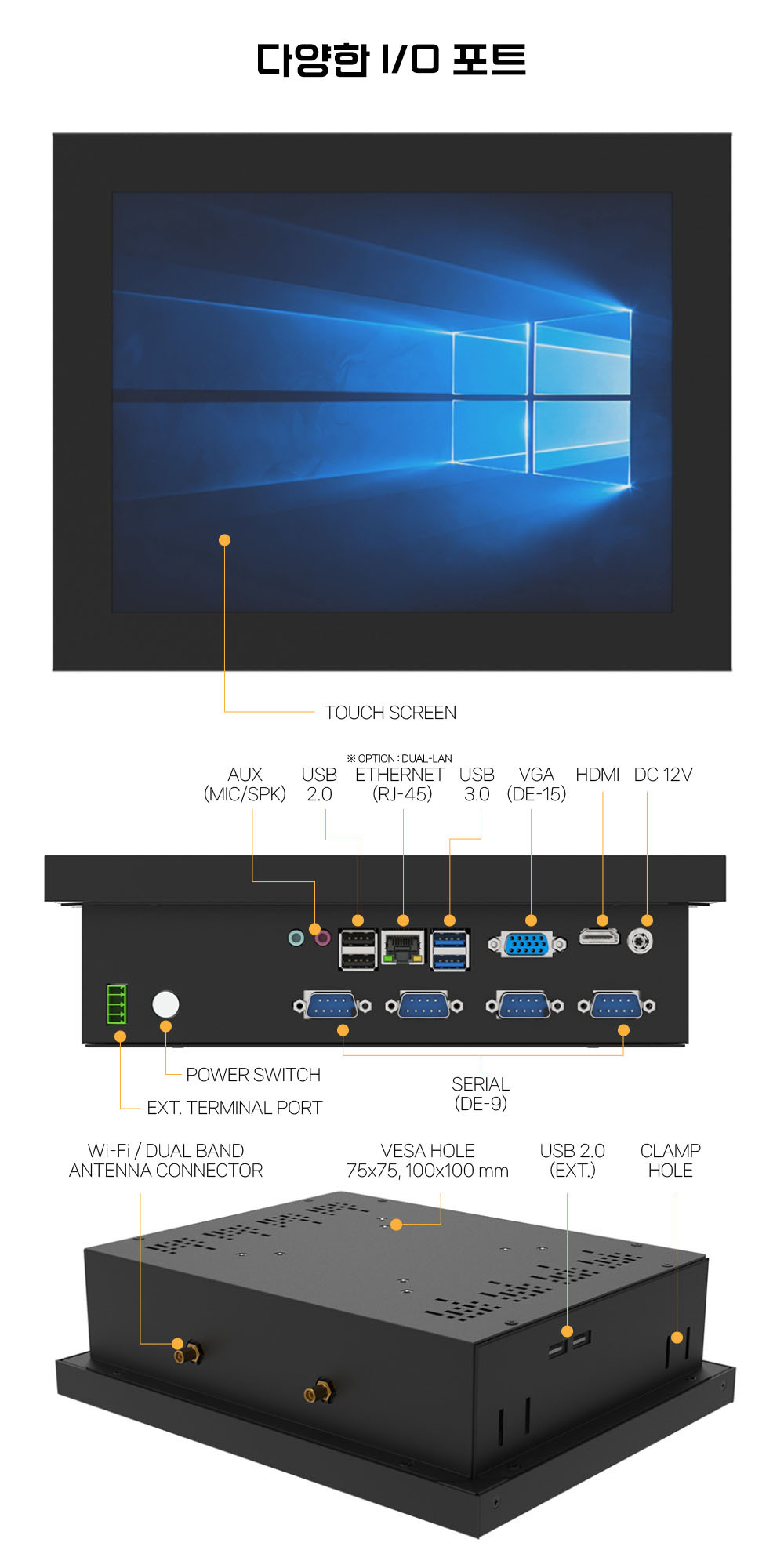

※ I/O Port는 메인보드 사양에 따라 변경될 수 있습니다.

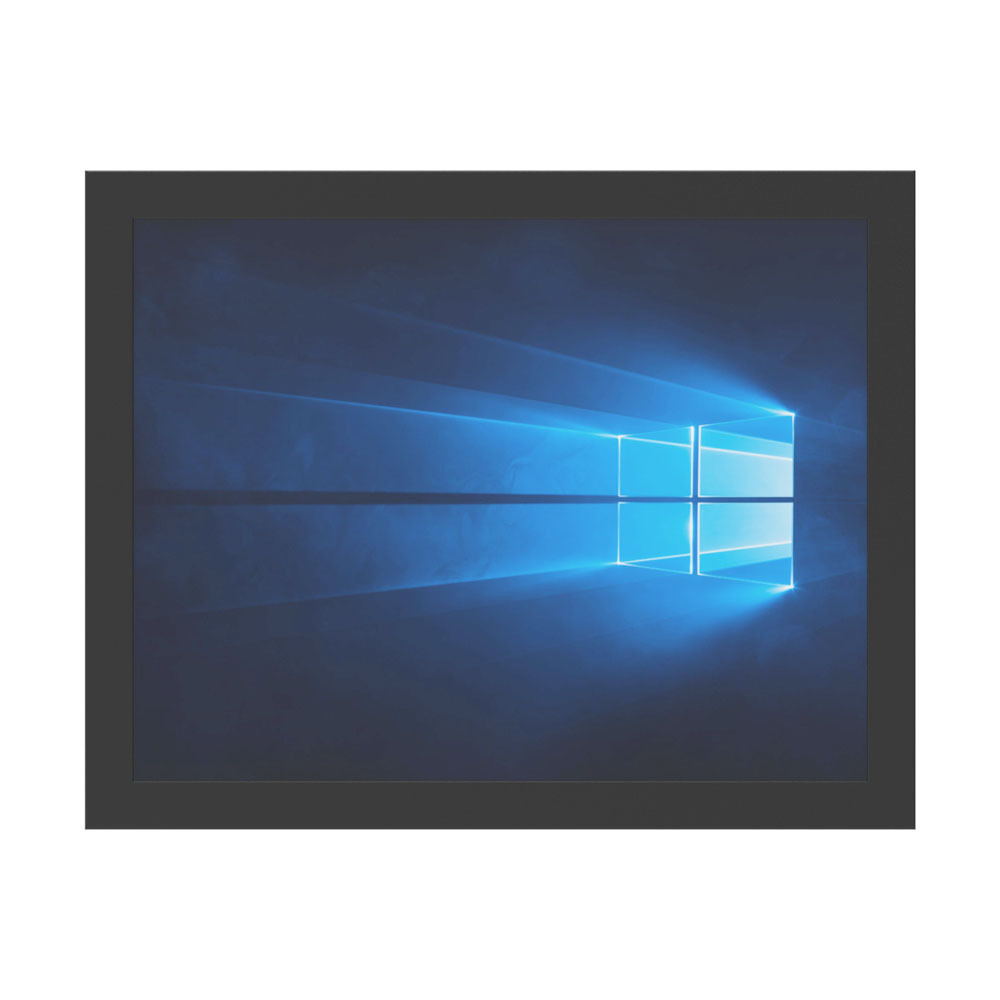

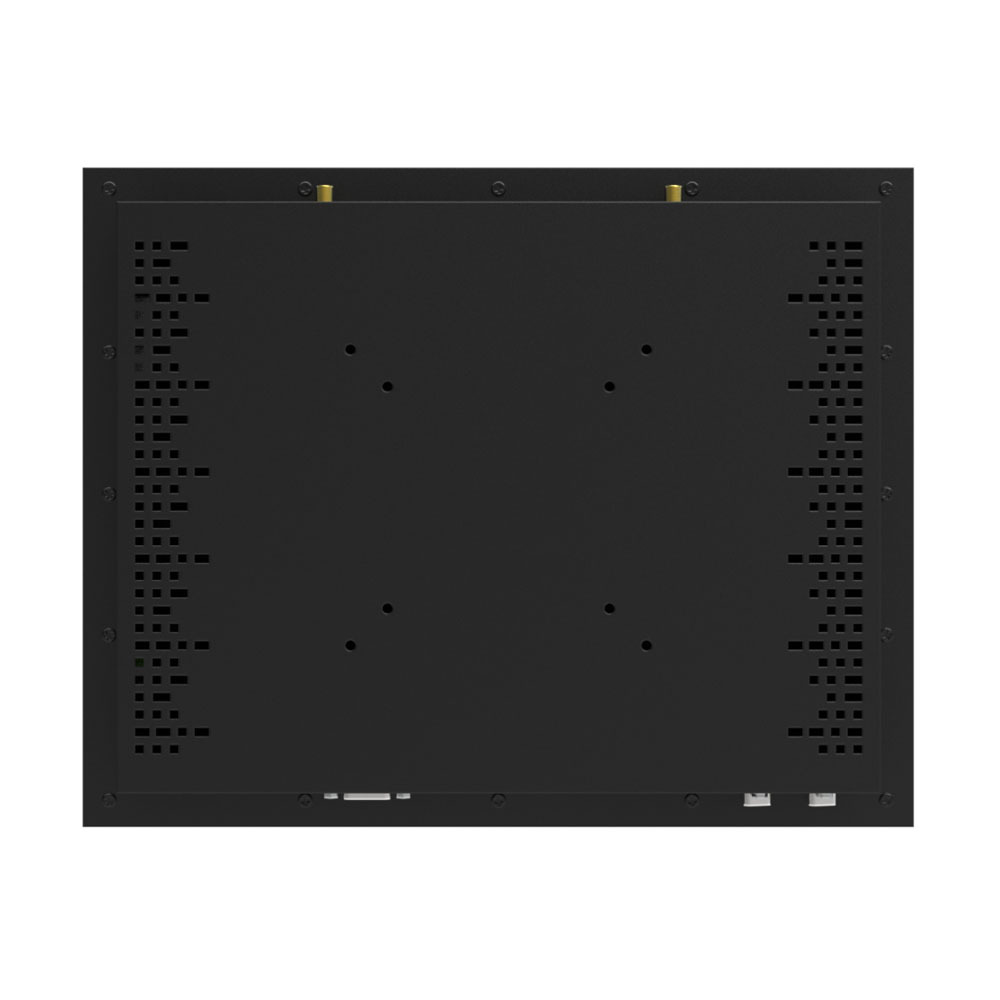

PP104DAWB
